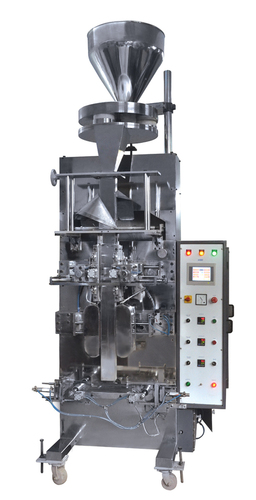

Four Corner Pouch Packing Machine

Four Corner Pouch Packing Machine
Four Corner Pouch Packing Machine
Product Code : 10
Product Description

With the support of our skilled professionals, we are manufacturing, exporting and supplying a quality approved Four Corner Pouch Packing Machine. It is ideal for packing of different items like tea, rice, salt, sugar, grains, detergent and pesticides. The offered machine is manufactured by our ingenious professionals using quality assured components with the aid of contemporary techniques. In addition, we offer this Four Corner Pouch Packing Machine to our clients at market-leading prices.

Features:

  • Optimum performance
  • Hassle-free functionality
  • User-friendly design
  • Longer service life

Technical Specification:

Sealing Type
  • Four corner seal with side gusset
  • Four corner & center Seal with side gusset
Packing Range Up to 2 Kgs. (Depends upon the product to be packed)
Packing Size (Open roll width)
  • Up to 400 mm. roll width (Model: EE-CTQ-500)
  • Up to 550 mm. roll width (Model: EE-CTQ-700)
Packing material Heat sealable, Pet poly.
Electric Control PLC with touch screen HMI.
Paper pulling By pulling belt & pneumatic control.
Temperature controller PID control.
Packing Speed Up to 50 Pouches/min (Depends upon weight & characteristics of the product to be packed)
Power Required 440 VAC, Three Phase, 50 Hz, 3 kW
Compressed Air Required 8-10 Kg / cm Sq.
Optional Attachments
  • Ink Coding
  • Hot foil batch coding
  • Nitrogen Flushing
  • Infeed conveyor
  • Outfeed conveyor
Optional Filling Systems
  • Volumetric Cup Filler
  • Auger Filler (Servo / clutch-brake control)
  • Loadcell controlled Weigh filler
  • Multi head weigh filler
