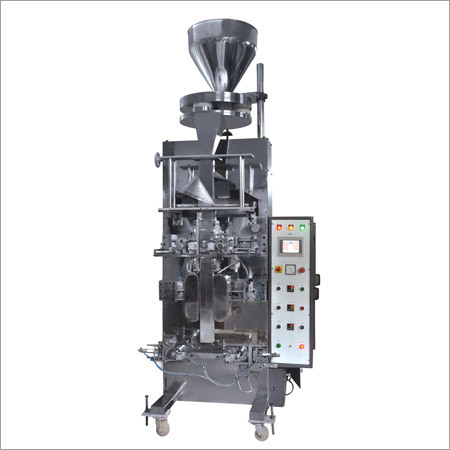

Collar Type Cup Four Side Seal

Collar Type Cup Four Side Seal
Collar Type Cup Four Side Seal
Product Code : 05
Product Description

As a trusted name, we are engaged in manufacturing, exporting and supplying Collar Type Cup Four Side Seal machine. The offered machine is extensively used for sealing and packaging purpose of different sizes pouches. At our modern production unit, this machine is manufactured under the proper supervision of our experts with the use of optimum grade components and contemporary techniques. Additionally, our clients can purchase the offered Collar Type Cup Four Side Seal machine at affordable prices from us.

Features:

  • Quick processing

  • Long service life

  • Negligible maintenance

  • Low power consumption

Technical Specification:

Sealing Type Four corner seal with side gusset
Four corner & center Seal with side gusset
Packing Range Up to 2 Kgs. (Depends upon the product to be packed)
Packing Size (Open roll width) Up to 400 mm. roll width (Model: EE-CTQ-500)
Up to 550 mm. roll width (Model: EE-CTQ-700)
Packing material Heat sealable, Pet poly.
Electric Control PLC with touch screen HMI.
Paper pulling By pulling belt & pneumatic control.
Temperature controller PID control.
Packing Speed Up to 50 Pouches/min (Depends upon weight & characteristics of the product to be packed)
Power Required 440 VAC, Three Phase, 50 Hz, 3 kW
Compressed Air Required 8-10 Kg / cm Sq.
Optional Attachments
  • Ink Coding
  • Hot foil batch coding
  • Nitrogen Flushing
  • Infeed conveyor
  • Outfeed conveyor
Optional Filling Systems
  • Volumetric Cup Filler
  • Auger Filler (Servo / clutch-brake control)
  • Loadcell controlled Weigh filler
  • Multi head weigh filler
